| एमओक्यू: | 1 |
| कीमत: | 500 |
| मानक पैकेजिंग: | 0.5*1M-4.8*12m |
| वितरण अवधि: | 5-8 साल |
| भुगतान विधि: | एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन, मनीग्राम |
| आपूर्ति क्षमता: | 5-8 साल |
High quality material for reliable marine safety and long service life
Qingdao Henger Shipping Supplies Co., Ltd
Located in Qingdao, China, we are a high-tech enterprise specializing in marine products manufacturing, research and innovation, and technical services. Our product line includes marine rubber fenders, marine airbags, navigation marks, and marine buoys.
All products are ISO 9001-2008 certified and have IACS quality authentication from CCS, BV, GL, ABS, LG, and other classification societies.

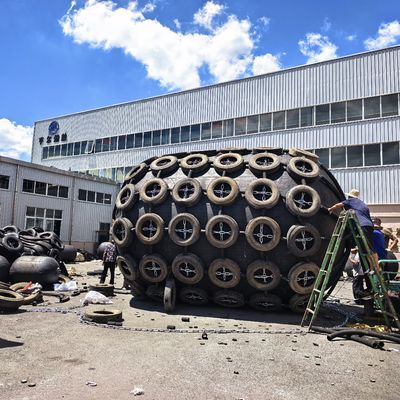

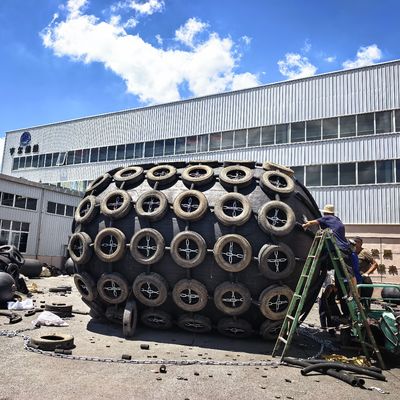

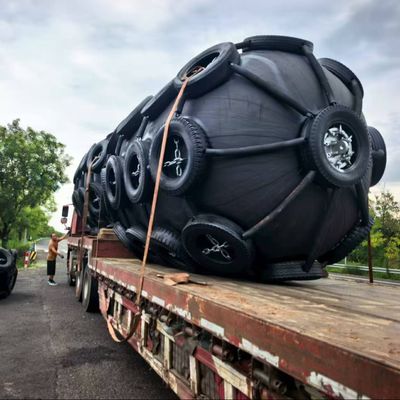

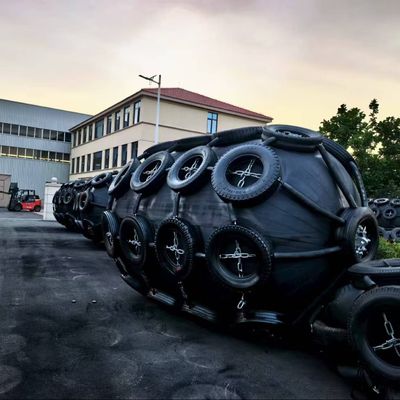

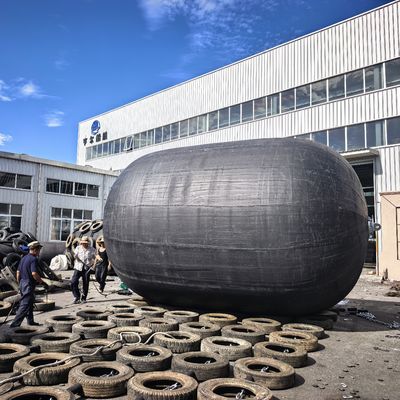

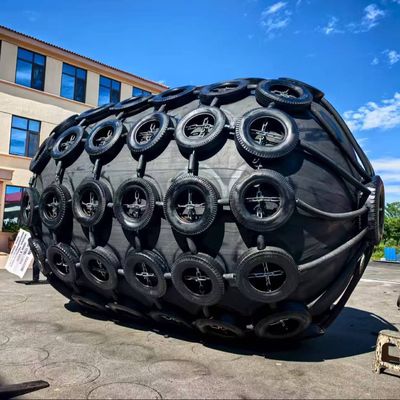

The "Yokohama Type Inflatable Rubber Fender" was developed in 1958. Our floating inflatable rubber fenders have evolved alongside ship technology advancements to accommodate progressively larger vessels including VLCCs, ULCCs, large gas carriers, bulk carriers, and floating structures.
| Fender Size | Compression Amount (60%) | Noumenon Weight (Kg) | Weight with Protective Jacket (Kg) | ||
|---|---|---|---|---|---|
| D (mm) | L (mm) | Reaction (KN) | Energy Absorption (KNm) | ||
| 500 | 1000 | 64 | 6 | 23 | 35 |
| 600 | 1000 | 74 | 8 | 28 | 40 |
| 700 | 1000 | 137 | 17 | 58 | 52 |
| 1000 | 1500 | 182 | 32 | 82 | 100 |
| 1000 | 2000 | 257 | 45 | 148 | 152 |
| 1200 | 2000 | 297 | 63 | 167 | 200 |
| 1350 | 2500 | 427 | 102 | 220 | 298 |
| 1500 | 2500 | 499 | 134 | 270 | 300 |
| 1500 | 3000 | 579 | 153 | 318 | 450 |
| 1700 | 3000 | 639 | 191 | 380 | 482 |
| 2000 | 3500 | 875 | 308 | 580 | 890 |
| 2000 | 4000 | 1000 | 352 | 680 | 1000 |
| 2500 | 4000 | 1381 | 663 | 1064 | 1180 |
| 2500 | 5500 | 2019 | 1131 | 1268 | 1380 |
| 3000 | 5000 | 2422 | 1357 | 1980 | 2388 |
| 3000 | 6000 | 2906 | 1293 | 2400 | 2690 |
| 3300 | 4500 | 1884 | 1175 | 2380 | 2617 |
